From Corner Castings to Cargo Doors: A Shipping Container Parts Guide

Shipping containers are more than just big steel boxes. Every corner, edge, and panel serves a purpose. Whether you’re using one for storage, transport, or a creative project like a container home, it helps to understand how they’re built and what each part does.

🇨🇦 Click here for an automated shipping container quote from Canuck Containers

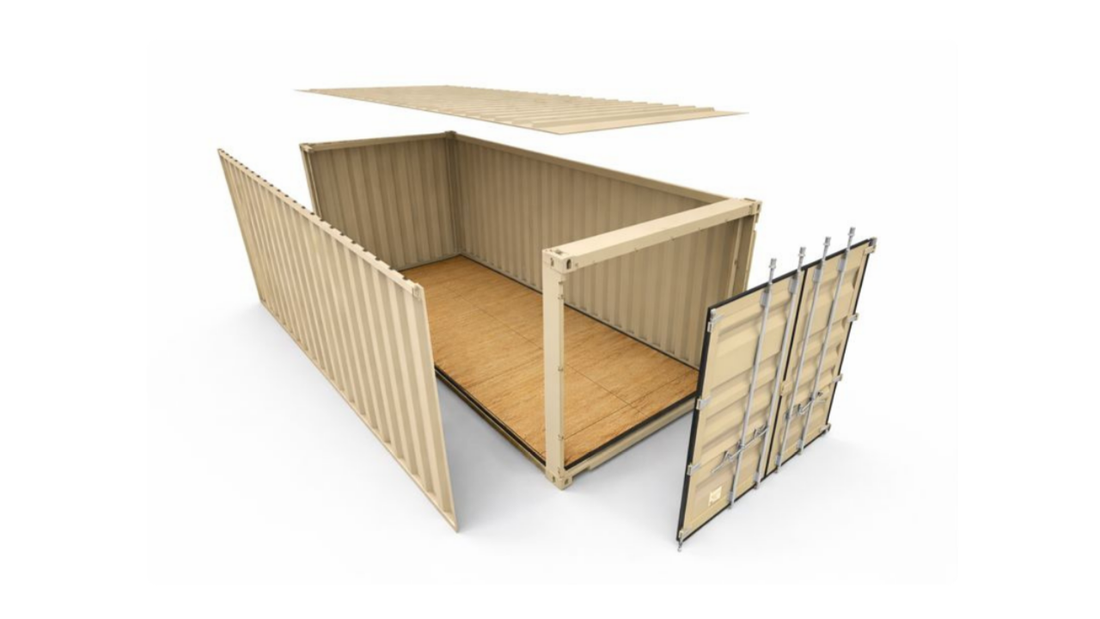

Here’s a breakdown of the key components that make up a standard ISO shipping container.

1. Corner Castings

Let’s start at the corners—literally. Every container has eight corner castings, one at each top and bottom corner. These solid steel blocks have oval-shaped holes and serve as connection points for lifting, stacking, or securing the container.

Cranes, forklifts, and locking mechanisms (like twist locks on ships or chassis) rely on these castings to move or secure containers. If you're modifying a container, you’ll want to preserve these unless you have a good reason not to.

2. Corner Posts

Running vertically between the top and bottom corner castings are the corner posts. These posts are heavy-duty structural elements that help the container handle weight when stacked—sometimes six or more high. They're designed to carry most of the vertical load and provide structural integrity.

If you're adding doors or windows to your shipping container, don't cut too close to the corner posts. They’re not just there for looks.

3. Side and End Walls

Side walls (long sides) and end walls (short sides) are made of corrugated steel. Corrugation adds strength without adding weight, which helps shipping containers handle pressure and weather without bending or warping.

These walls may look simple, but they’re engineered to take a beating—whether it’s from rough seas or shifting loads.

4. Roof Panel

Like the walls, the roof panel made from corrugated steel to resist pressure. But keep in mind, the roof panels themselves aren’t designed to hold significant weight. Standing on them or stacking heavy items directly on top—especially between the corner castings—can cause dents or structural damage.

5. Flooring

Most shipping containers come with a thick plywood floor supported by steel cross members. The standard wood is usually 28 mm marine-grade plywood. Underneath, steel beams (cross members) span the width of the container to give the floor strength and durability.

6. Cross Members

These horizontal steel beams are welded beneath the plywood floor and run side to side. Cross members keep the floor strong enough to support heavy cargo. They also provide airflow and drainage underneath the container when it’s sitting on uneven or wet ground.

If your container will be parked long-term on soft soil or gravel, inspect the cross members for rust or damage. They’re one of the first things to go if water sits underneath for too long.

7. Door End Frame

This part of the container houses the cargo doors and is heavily reinforced. The frame includes door posts (the vertical sides), a header (the top bar), and a threshold (the bottom edge). Together, they keep the doors square and aligned, even after years of loading and unloading.

The door frame is thicker and sturdier than the non-door end of the container. If you plan to convert a container and retain the original doors, this is where you’ll be doing most of the work.

8. Cargo Doors

The cargo doors are arguably the most recognizable feature of a shipping container. These double doors swing open wide to allow full access to the container’s interior.

Each door has:

• Locking rods: Vertical bars that run top to bottom and engage with the frame when closed.

• Handles: Lever handles attached to the locking rods.

• Cam keepers and cams: Hardware that secures the rods in place.

• Rubber gaskets: Flexible seals along the edges to keep out water and dust.

Doors should open smoothly and seal tightly. If they don’t, check for rust, warping, or damaged gaskets.

9. Lockbox

Many shipping containers come with or can be retrofitted with a lockbox—a small steel housing that shields your padlock from tampering. These boxes are welded onto one of the doors and make it harder for someone to cut or break the lock.

10. Forklift Pockets

Not all containers have these, but many 20-foot units include forklift pockets: two reinforced cutouts near the bottom of the container that allow a forklift to lift it from the side.

Forklift pockets make short-distance moves easier but aren’t strong enough for lifting fully loaded containers over long distances. Use them with caution and only when appropriate.

11. Ventilation Slots

Basic containers usually have small passive vents on the side walls near the top. These help with air circulation and reduce moisture buildup.

Vent placement and size can vary by manufacturer. For long-term storage or modified builds, you might want to add powered vents, louvered panels, or additional passive units to prevent condensation.

12. CSC Plate

Every shipping container has a small metal plate, typically riveted near the cargo doors. This is the CSC (Convention for Safe Containers) plate, and it includes key details like the manufacturer, container number, max gross weight, and stacking capabilities.

It’s your container’s ID tag—and if it’s being used for transport, this plate needs to be present and legible.

It’s All in the Details

Understanding the parts of a shipping container helps you choose the right one for your needs. From corner castings to locking rods, every part plays a role in keeping your cargo secure, your site organized, or your next container project on track.
